The Routing Options enable you to have finer control over routing within Animate. Once configured, the options are available within the Design tab of the Constraints window.

This topic shows you how to use the Project Editor to configure those options.

  1. To launch the Animate Project Editor, on the command line enter:
    animate_project_editor

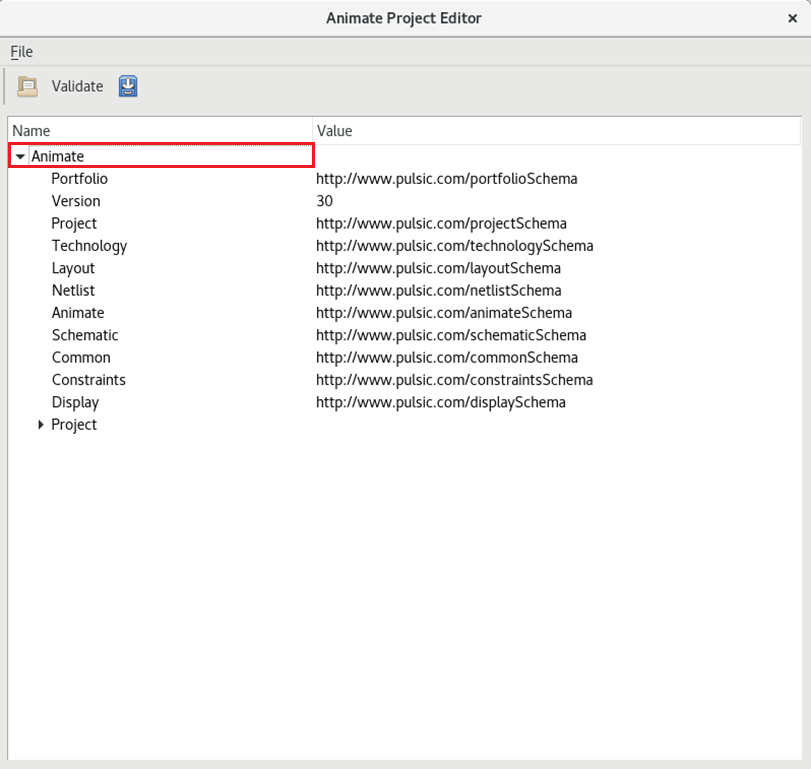

  2. Expand the Animate section.

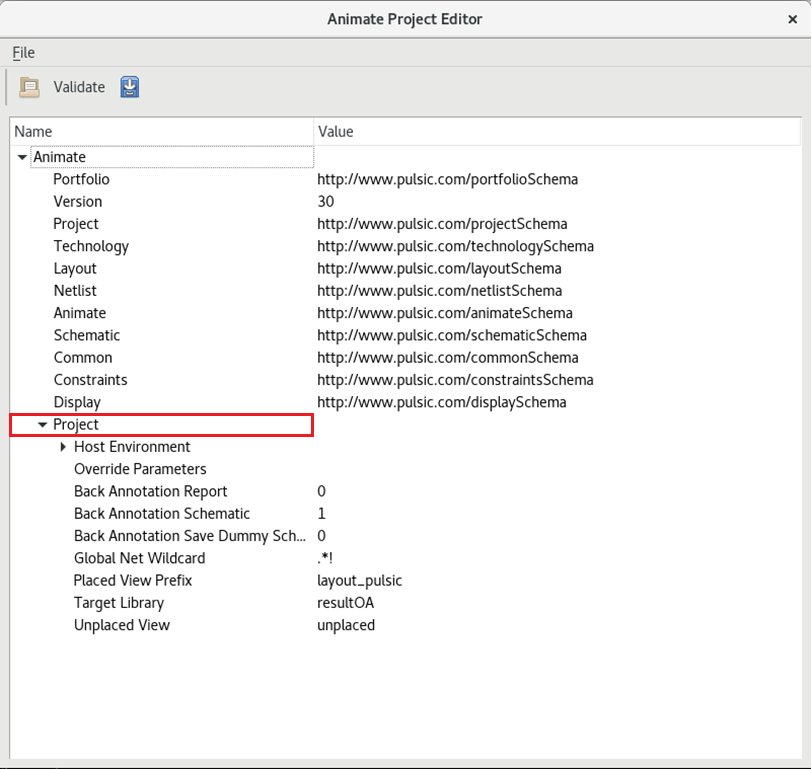

  3. Expand the Project section.

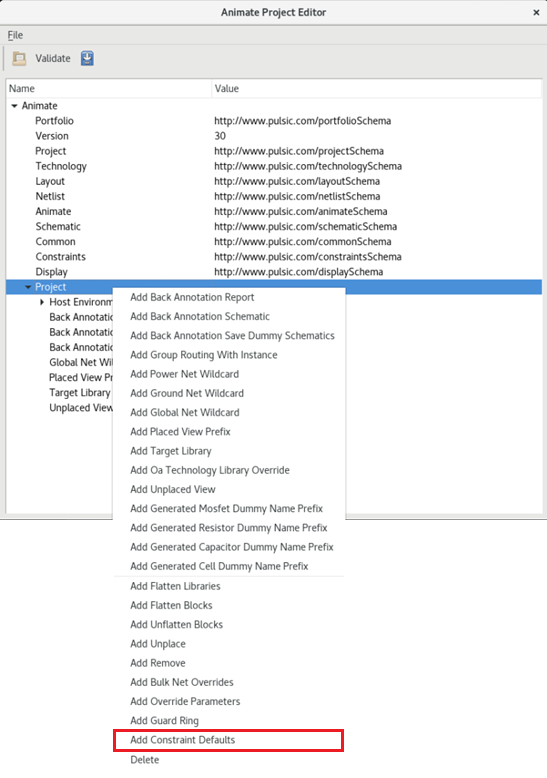

  4. Right-click and select the Add Constraint Defaults option.

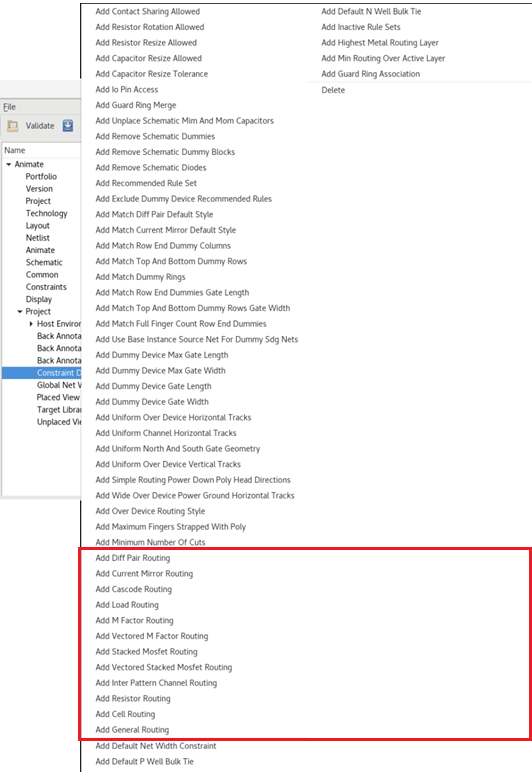

  5. This will provide you with the available constraints. In the example below, the routing options are highlighted.

    These options allow you to configure the routing options for different Animate structures.
  6. All routing options default to ON, turning them off means the General Routing option will be used for that option unless also turned off.

Deactivating a Routing Option

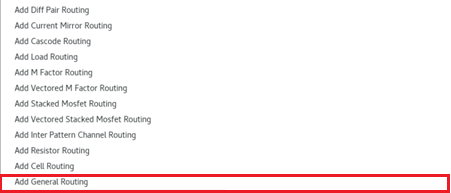

  1. Using General Routing as an example, select Add General Routing.
    (This will work for all routing options.)

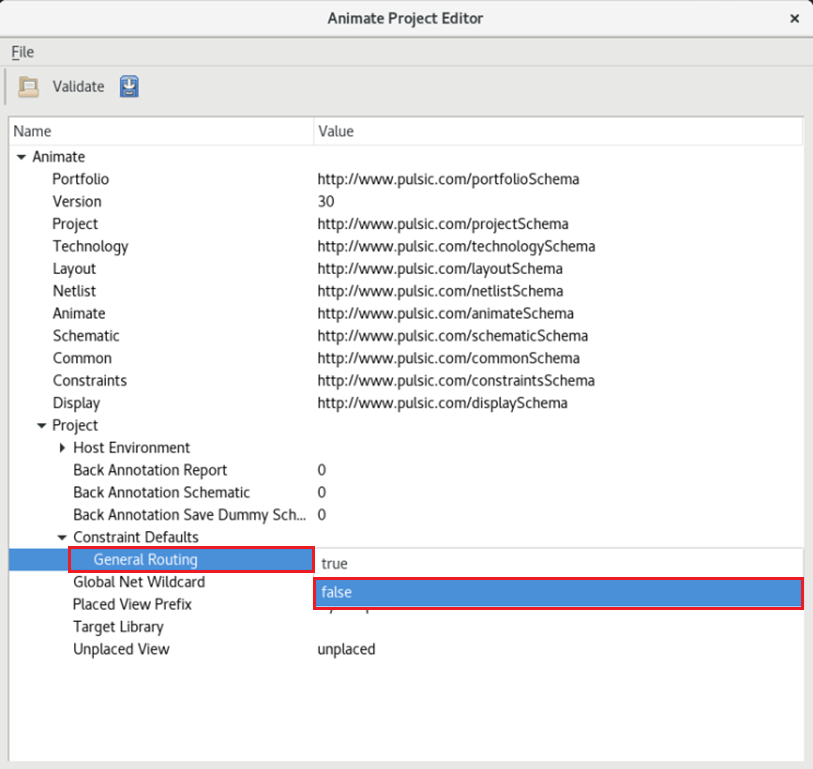

  2. Double-click in the space next to General Routing within the Value column.
  3. Click on the drop down.
  4. Select False.
  5. Click the Validate and Save button  to save  your project settings.
